Clinical overview
Pneumoperitoneum — the controlled insufflation of gas into the peritoneal cavity to create a working space — is the foundation on which all laparoscopic gynaecological surgery is built. Without it there is no triangulation, no view of the pelvis, no safe passage for secondary trocars. Yet the same manoeuvre that makes minimal-access surgery possible also produces the most dangerous moments in the operation. The two phases of greatest hazard in any laparoscopy are entry (creating the pneumoperitoneum and placing the primary port) and the systemic physiological burden of the carbon dioxide and raised intra-abdominal pressure that the pneumoperitoneum imposes for the duration of the case. Understanding pneumoperitoneum is therefore not a technical footnote; it is a question about gas physics, cardiorespiratory physiology, anaesthetic interaction and the prevention of catastrophic vascular and visceral injury.
For the FCOG(SA) candidate this objective sits within the technical and perioperative domain and connects directly to mis-complication-prevention, surgical-instruments-safe-use, electrosurgery-safety and the safe-entry literature. The discussion below works from why we choose carbon dioxide, through how the gas is delivered and monitored, to the systemic consequences and the situations — pregnancy, cardiac disease, the obese or very thin patient — where the principles must be adapted. The South African context matters: laparoscopy is increasingly available at regional and tertiary level, but insufflator quality, CO₂ supply, anaesthetic monitoring and surgeon experience vary, so a principled understanding that does not depend on a specific machine is what protects the patient.
Core knowledge

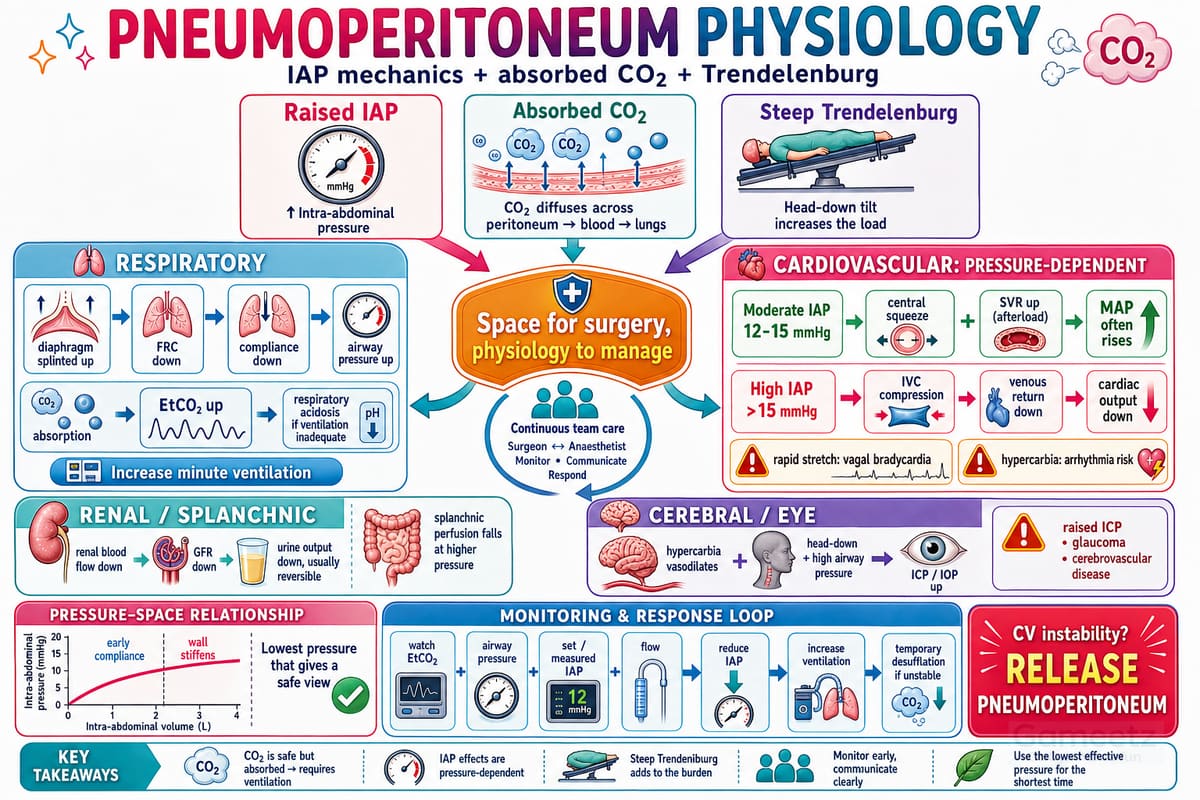

Figure F8.1 — Pneumoperitoneum physiology: raised intra-abdominal pressure + absorbed CO₂ + steep Trendelenburg, and their pressure-dependent respiratory, cardiovascular, renal and cerebral effects — use the lowest effective pressure for the shortest time.
Why carbon dioxide?
Carbon dioxide is the near-universal insufflation gas for laparoscopy, and the reasons are worth knowing precisely because they explain both its advantages and its physiological cost. CO₂ is non-combustible, which is essential when electrosurgery or laser is used inside the abdomen — oxygen or nitrous oxide would support combustion. It is highly soluble in blood (far more soluble than air, nitrogen or helium), so a small gas embolus is buffered and rapidly cleared rather than locking in the right ventricular outflow tract. It is cheap, readily available and colourless, and it is rapidly absorbed and excreted by the lungs, which speeds recovery and limits residual post-operative gas. The price of that high solubility is precisely that the body absorbs large quantities of CO₂ across the peritoneum, producing hypercarbia and a respiratory acidosis that the anaesthetist must clear — the central physiological theme of this chapter.
Alternative gases are largely of historical or niche interest. Nitrous oxide is less irritant and is explored for awake/office procedures, but it supports combustion and is avoided where energy is used. Helium and argon are inert but insoluble, which makes any embolus more dangerous; they are not standard. Room air and oxygen are obsolete and unsafe for energy-based surgery.
Pressure, volume and the working space
A pneumoperitoneum is defined by two linked variables: the intra-abdominal pressure (IAP) the insufflator maintains and the volume of gas needed to reach it. The relationship is non-linear — the relaxed abdominal wall and diaphragm are compliant up to a point, then stiffen, so the last increments of pressure buy little extra space at a steeply rising physiological cost. Standard teaching is that the working pressure for maintenance is in the region of 12–15 mmHg, with lower pressures (often around 8–12 mmHg) increasingly favoured to reduce systemic effects and post-operative pain where the view permits. These figures are widely taught surgical convention rather than a single guideline-mandated threshold, so treat the exact numbers as standard practice rather than fixed law, and titrate to the view and the patient.
A separate and safety-critical concept is the high initial intraperitoneal pressure during Veress-needle entry. When entry is by a closed (Veress) technique, the opening pressure read on the insufflator before any gas flows is the single most useful confirmation that the needle tip lies free in the peritoneal cavity rather than in the omentum, bowel, a vessel or the preperitoneal space. A low opening pressure (commonly quoted as below about 8–10 mmHg) is reassuring; a high opening pressure suggests the tip is not free. This is the "intraperitoneal pressure" safety test emphasised in the RCOG guidance on laparoscopic injuries.
Insufflator function and the gas circuit
The electronic insufflator is a feedback device. The surgeon sets a target IAP and a flow rate; the machine delivers CO₂ until the set pressure is reached, then maintains it, replacing gas lost through leaks, suction and absorption. Modern insufflators display set pressure, actual (measured) intra-abdominal pressure, gas flow rate and total volume delivered, and they alarm when measured pressure exceeds the set value (over-pressure) or when high flow indicates a major leak. Knowing these read-outs is examinable: the opening pressure confirms safe entry, a sudden high-flow state suggests a disconnection or a large leak, and a rising measured pressure that the machine cannot relieve may indicate light anaesthesia/abdominal-wall tone, a kinked tube, or the catastrophic scenario of gas tracking into the wrong plane.
Gas is ideally warmed and humidified in longer cases; cold, dry CO₂ contributes to hypothermia and peritoneal desiccation, though the benefit of heated/humidified gas is debated and it is not universally available in SA theatres.
Systemic physiology of the pneumoperitoneum
The pneumoperitoneum has two distinct physiological insults that combine: mechanical effects of raised IAP and the chemical effects of absorbed CO₂. Layered on top is the patient position — gynaecological laparoscopy is performed in steep Trendelenburg (head-down), which has its own consequences.
Respiratory. Raised IAP and head-down tilt splint the diaphragm upward, reducing functional residual capacity and pulmonary compliance and promoting basal atelectasis. Peak airway pressures rise, and ventilation–perfusion matching worsens. Simultaneously, CO₂ absorbed from the peritoneum raises arterial CO₂; the anaesthetist must increase minute ventilation to maintain normocapnia, and end-tidal CO₂ monitoring is the key guide. A rising end-tidal CO₂ that cannot be ventilated away is an important warning sign (extraperitoneal insufflation, subcutaneous emphysema, or — rarely — gas embolism). This links directly to arterial-blood-gas interpretation, since the picture is a respiratory acidosis.
Cardiovascular. The effects are biphasic and pressure-dependent. At moderate IAP (≤12–15 mmHg) splanchnic and venous blood is squeezed centrally, transiently increasing preload, while the catecholamine and vasopressin response and the direct effect of hypercarbia raise systemic vascular resistance and afterload. The net effect in a healthy patient is a modest rise in mean arterial pressure with relatively preserved cardiac output. At higher pressures the inferior vena cava is compressed, venous return and preload fall, and cardiac output drops — dangerous in the hypovolaemic or cardiac-compromised patient. Hypercarbia also sensitises the myocardium and can provoke arrhythmias, classically a vagally-mediated bradycardia at the moment of rapid peritoneal stretch during insufflation.
Renal and splanchnic. Raised IAP reduces renal blood flow and glomerular filtration and reduces urine output intra-operatively; this is usually transient and reversible but is relevant in prolonged cases.
Cerebral. Hypercarbia is a cerebral vasodilator and, combined with steep head-down tilt and raised intrathoracic pressure, raises intracranial and intra-ocular pressure — a consideration in patients with raised ICP, severe glaucoma or significant cerebrovascular disease.
Closed versus open (and direct) entry
How the pneumoperitoneum is created is inseparable from its principles because entry is when most major vascular and bowel injuries occur. There are three broad approaches:
- Closed (Veress needle) entry: a spring-loaded needle is inserted blind (usually at the umbilicus), the pneumoperitoneum is created first, then a trocar is passed. Safety rests on the confirmatory tests below.
- Open (Hasson) entry: a small cut-down to the peritoneum under direct vision, then a blunt cannula — favoured where there is a history of laparotomy/adhesions and by many as a default.
- Direct trocar entry (with or without an optical trocar): without prior Veress insufflation — used by experienced surgeons but not a beginner's technique.
No single method has been shown to be unequivocally superior for all patients; the principle is that the surgeon chooses based on patient factors (prior surgery, body habitus, suspected adhesions) and uses whichever they can perform safely. The alternative entry point of choice when umbilical entry is unsafe is Palmer's point in the left upper quadrant (mid-clavicular line, just below the costal margin), used after excluding splenomegaly/gastric distension and decompressing the stomach.
Assessment
Confirming safe pneumoperitoneum at entry
The principles of safe pneumoperitoneum are mostly a checklist of confirmations, and these are high-yield for vivas:
- Empty the bladder (catheter) and decompress the stomach (orogastric tube) before entry — both reduce the risk of visceral puncture, the stomach especially before Palmer's-point entry.
- Position the patient flat (horizontal) for entry, not yet in Trendelenburg — tilting before entry distorts the relationship of the umbilicus to the great vessels and the aortic bifurcation. Tilt only after the pneumoperitoneum and ports are safely established.
- Insert the Veress needle and look for the safety signs: the double "click" of the spring as fascia and peritoneum are crossed, a low opening pressure on the insufflator (the single most reliable indicator that the tip lies free intraperitoneally), and free flow with a low, stable pressure.
- Discredited tests should be named and discarded: the saline "drop" / aspiration tests and the audible "hiss" are unreliable; the RCOG guidance specifically moved away from relying on the volume of gas instilled and toward intraperitoneal pressure (the opening pressure) as the key confirmatory measure.
- After reaching the target pressure, the first port is placed, and the first action through the laparoscope is a 360° panoramic inspection for bowel or vascular injury beneath the entry site before any further instrumentation. This single look catches the injury that, if missed, becomes a peritonitis or a death.
Intra-operative monitoring of the pneumoperitoneum
Throughout the case the surgeon and anaesthetist jointly monitor: the insufflator read-outs (set vs measured IAP, flow, total volume), end-tidal CO₂ and airway pressures, and the abdominal wall and subcutaneous tissues for crepitus indicating surgical emphysema. The relationship to arterial-blood-gas analysis is direct — if end-tidal CO₂ rises uncontrollably, a blood gas confirms the respiratory acidosis and helps distinguish simple hypercarbia from a more sinister cause.
Patient assessment before committing to pneumoperitoneum
Preoperative work links to preoperative-performance-status and eras-principles. The questions to ask are: does this patient tolerate the cardiorespiratory load (significant cardiac failure, severe pulmonary disease, pulmonary hypertension)? Are there raised-ICP, glaucoma or shunt concerns? What is the abdominal access risk — previous midline laparotomy, known dense adhesions, very high or very low BMI, an enlarged uterus or mass reaching the umbilicus? In pregnancy (e.g. adnexal-mass-in-pregnancy) the gravid uterus alters anatomy and physiology and demands modified entry and lower pressures.
Management
Setting and titrating the pneumoperitoneum
Once entry is confirmed, maintenance pressure is set to the lowest value that gives an adequate, safe view — commonly 12–15 mmHg, with a deliberate move toward 8–12 mmHg ("low-pressure pneumoperitoneum") where the operation allows, because lower IAP measurably reduces post-operative shoulder-tip and abdominal pain and lessens the cardiorespiratory burden. Flow is begun slowly at entry (a low initial flow guards against a rapid stretch-induced vagal bradycardia and against rapidly inflating the wrong plane) and increased once free intraperitoneal placement is confirmed.
Communication with the anaesthetist — a continuous loop
Safe pneumoperitoneum is a shared-care manoeuvre. The surgeon must announce insufflation, announce the pressure, and announce desufflation, and respond to the anaesthetist's feedback. If end-tidal CO₂ climbs, options in order are: confirm the gas is going where it should, reduce the IAP, allow the anaesthetist time to increase ventilation, and if necessary desufflate temporarily. If cardiovascular instability develops, the first reflex is to release the pneumoperitoneum — removing the mechanical and chemical insult almost always begins to correct the physiology.
Emergency: suspected gas (CO₂) embolism — the drill
CO₂ embolism is rare but is the most feared acute complication of insufflation, typically occurring at induction of the pneumoperitoneum when the Veress needle or trocar is inadvertently in a vessel and gas is forced directly into the venous system. Recognise it: sudden cardiovascular collapse, a fall (then sometimes a transient rise) in end-tidal CO₂, hypoxia, arrhythmia and the classic "mill-wheel" churning murmur. The drill must be unmistakable:
- STOP insufflation immediately and desufflate — release all the gas.
- Call for help and declare the emergency.
- 100% oxygen, stop any nitrous oxide.
- Position the patient head-down and left lateral (Durant's position) to trap gas in the right ventricular apex away from the outflow tract.
- Support the circulation — fluids, vasopressors, and CPR if there is arrest; central aspiration of gas may be attempted if a central line is in situ.
- CO₂'s high solubility means that, if the patient is supported through the acute event, the embolus is reabsorbed relatively quickly — which is precisely why CO₂ is the chosen gas.
Other entry-related complications and their management
- Extraperitoneal / preperitoneal insufflation produces a poor "tented" view, asymmetrical distension and a high measured pressure for little working space; recognise early, desufflate and reposition rather than struggling on.
- Subcutaneous (surgical) emphysema — crepitus, a rising end-tidal CO₂, sometimes tracking to the neck and chest. Usually self-limiting once insufflation stops and CO₂ is absorbed, but it warns of a leak around a port and, if it tracks to the mediastinum, mandates vigilance for pneumothorax/pneumomediastinum.
- Major vessel or bowel injury at entry — the catastrophe the safety checklist exists to prevent. If the aorta, IVC or iliac vessels are entered, the response is immediate conversion to laparotomy, pressure/tamponade, massive-transfusion activation and vascular-surgery help. A recognised bowel injury is repaired; the killer is the unrecognised one — hence the disciplined initial 360° inspection. This connects to shock-management and the principles of mis-complication-prevention.
End of operation
At the end, desufflation should be deliberate and as complete as possible — actively expelling residual CO₂ reduces post-operative shoulder-tip pain caused by diaphragmatic irritation from retained gas. Port sites of ≥10 mm (and often smaller in thin patients) require fascial closure to prevent port-site herniation.
South African context
Laparoscopy in South Africa is concentrated at regional and tertiary level facilities with the equipment, CO₂ supply and capnographic monitoring it demands; it is generally not a district-hospital procedure. Where laparoscopic infrastructure, surgeon volume or capnographic monitoring are limited, the safe and defensible decision may be open surgery or referral — the principle of operating only where pneumoperitoneum can be created and monitored safely. Because HIV prevalence is high (linking to hiv-gynaecology), universal precautions during the pressurised gas leaks of laparoscopic surgery are routine. Perioperative care should follow eras-principles adapted to local resources, and lists must account for CO₂ cylinder availability and insufflator maintenance.
Red flags / pitfalls
- Tilting the patient into Trendelenburg before entry. Insert the Veress needle/primary trocar with the patient flat; head-down before entry shifts the great vessels under the umbilicus and increases the risk of aortic/iliac injury. Tilt only after ports are safely sited.
- Trusting discredited Veress tests. The "hiss", the saline drop and the aspiration tests are unreliable. The low opening intraperitoneal pressure is the key confirmation of correct placement.
- Not decompressing the bladder and stomach. A full stomach is a particular trap for Palmer's-point entry; a full bladder for suprapubic ports.
- High flow / high pressure at the start. Rapid high-flow insufflation can provoke vagal bradycardia and risks rapidly inflating the wrong plane. Start slow and low; watch the heart rate.
- Ignoring a rising end-tidal CO₂. It may be benign hypercarbia, but it can signal subcutaneous emphysema, extraperitoneal insufflation or embolism — investigate, do not just ventilate harder.
- Failing the initial 360° inspection. The most dangerous injury is the unseen bowel or vessel injury at the entry site. Look first, before any other instrument.
- Pushing the pressure up to improve a poor view instead of asking why the view is poor (light anaesthesia/abdominal tone, wrong plane, full rectum). Higher IAP compromises venous return and cardiac output.
- Operating where pneumoperitoneum cannot be safely monitored. No capnography, no maintained insufflator, no CO₂, or insufficient surgeon experience for the planned entry — convert the plan to open surgery or refer.
- Underestimating the cardiac/respiratory-compromised patient. Pulmonary hypertension, severe cardiac failure and significant respiratory disease tolerate the pneumoperitoneum and steep tilt poorly; lower the threshold for lower pressures, lower tilt, or an alternative approach.
- Incomplete desufflation. Residual CO₂ irritates the diaphragm and is a leading cause of post-operative shoulder-tip pain.
Evidence anchors
- RCOG Green-top Guideline No. 49 — Preventing Entry-related Gynaecological Laparoscopic Injuries. The reference standard for the principles of safe entry and pneumoperitoneum: Veress technique, the primacy of intraperitoneal (opening) pressure as the confirmatory test, the flat-patient-for-entry rule, Palmer's point as the alternative entry site, and the discrediting of older Veress confirmation tests. (Listed in
docs/VERIFIED-SOURCES.mdas GTG 49 — Laparoscopic Injuries.) - AAGL electrosurgery/hysteroscopy safety guidance — relevant to the choice of a non-combustible insufflation gas (CO₂) when energy devices are used, and to fluid/gas-deficit principles in endoscopic distension media (the analogous concept in operative-hysteroscopy). (
docs/VERIFIED-SOURCES.md, Domain F technical/perioperative.) - WHO Surgical Safety Checklist and ERAS Society gynaecologic/oncology guidelines — the perioperative framework within which pneumoperitoneum is created, including patient positioning, normothermia and the team communication loop the manoeuvre depends on. (
docs/VERIFIED-SOURCES.md.) - South African National Integrated Maternal and Perinatal Care Guideline (NDoH, 2024) and the levels-of-care framework — context for where laparoscopy (and thus pneumoperitoneum) is appropriately offered in the SA public system and when referral to a higher level is the safer course. (
docs/VERIFIED-SOURCES.md.)
Author's note on hedged facts: the specific working-pressure ranges (12–15 mmHg maintenance, 8–12 mmHg low-pressure, and the <8–10 mmHg "low opening pressure" cut-off) and the systemic-physiology figures are stated as standard surgical/physiological teaching and as the principle articulated by RCOG GTG 49; the exact numeric thresholds are conventional and not a single line-itemed value in
docs/VERIFIED-SOURCES.md, so they are written cautiously rather than attached to a fabricated citation. Durant's position and the gas-embolism drill are standard anaesthetic/surgical teaching, not a specific guideline number on the verified list.
